Using the File Upload Field

Published in Convert Forms
Updated 20 Jun, 2024

Do you want to allow users to upload files on your site? Convert Forms File Upload Field allows you to easily collect files and media through your Joomla! forms. Let's see how you can easily add an upload field to your form like in the screenshot below.

Joomla File Upload Field

How to add a File Upload field

Convert Forms makes it easy to accept files from your website visitors. All you need to do is add the File Upload field to your form with just a single click.

Add File Upload Field to Joomla! Forms

Where are uploaded files stored?

By default, the user-uploaded files are stored in the com_convertforms/uploads folder inside the media directory of your site.

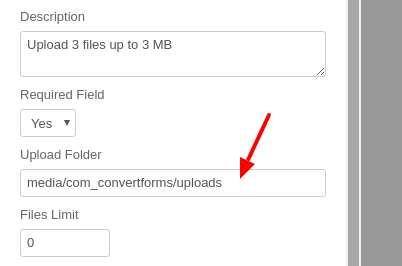

Configure the Uploaded Folder in your Joomla! Form

If you’d prefer to upload the files to another folder, click on the File Upload field in the form builder and in the Upload Folder option enter a path relative to the root of your webspace. Make sure the path entered is writable, otherwise the file upload will fail.

How to allow multiple file uploads?

Convert Forms File Upload field supports multiple file uploads with a single field. To do so, go to the File Upload field settings and configure the Files Limit option accordingly. Enter 0 if you don't want any limit.

Allow multiple file uploads in your Joomla! Form

The File Limit option is available in the Pro version only. Convert Forms Free users are limited to upload 1 file per field.

What is the maximum file size allowed for uploads?

To find the maximum allowed file size, you can click on the File Upload field in the form builder. Then, from the Field Options panel, mouse over the the File Size Limit label. The tooltip will show the maximum file size that your server allows.

Set the maximum allowed file size in your Joomla! Form

If you’d like to increase your site's file upload size, you’ll need to contact your hosting provider to find out if it’s possible.

How to resize images?

This feature is currently available in the latest development release.

Images uploaded by your users are, by default, saved as-is. This means that there's a high chance your users upload large image files, and you end up serving these images to your visitors, which increases page load times, which isn't ideal.

This is where resizing images comes into play. It helps optimize image sizes for faster loading times and improved site display.

The supported file types are JPG, PNG, WEBP, and GIF.

Available options:

  • Disabled: Do not resize images.
  • By Width: Resizes the image based on its width, maintaining the aspect ratio.
  • By Height: Resizes the image based on its height, maintaining the aspect ratio.
  • Custom Size: Crops the image to the specified width and height, centered.

Image resizing happens when the form is submitted. When you resize by width or height, the aspect ratio is preserved. When the Custom Size option is selected, the image is resized to the specified dimensions and cropped. We only resize the original image, meaning no duplicate images are generated. Also, there is no upscaling happening to your images. The image will only be resized if larger than the specified dimensions.

Resize by Width

To resize the uploaded images to a specific width and maintain the aspect ratio, go to your form > File Upload field > Resize Images > Select "By Width" and specify the desired width.

Resize Images by Width

Resize by Height

To resize the uploaded images to a specific height and maintain the aspect ratio, go into your form > File Upload field > Resize Images > Select "By Height" and specify the height you desire.

Resize Images by Height

Resize by Custom Size

To resize the uploaded images to a specific width and height, which will resize the image to the specified dimensions and crop it, go into your form > File Upload field > Resize Images > Select "Custom Size" and specify the width and height you desire.

Resize Images by Custom Size

How to restrict certain file types?

To restrict certain file types, click on the File Upload field in the form builder. In the Field Options panel there will a field called Allowed File Types. You can specify the extensions you’d like to allow, separated by a comma.

Allow only certain file types to be uploaded in your Joomla! Form

How to auto-delete old uploaded files?

By default, files uploaded in a File Upload field will remain on your site indefinitely. If you are getting a lot of uploads, though, the server space used by the uploaded files can quickly mount up, requiring some regular housekeeping to free up space. Convert Forms can be configured to auto delete uploaded files after a period set in the Auto Delete Files option found in the File Upload settings.

For example, to auto-delete files more than 15 days old follow the steps below.

Step 1: Configure the field

Set the Auto Delete Files option to 15 and save your form.

Convert Forms Auto Delete Old Files

Step 2: Enable the files cleaner plugin

Go to the Extensions -> Manage and search for the System - Convert Forms Uploaded Files Cleaner plugin and click to activate it. If you have already enabled it, skip this step.

Step 3: Setup CRON job

You will need to create a CRON job on your server that will schedule the deletion of the files at regular intervals and automate the process for all forms that accepts file uploads. This CRON job must be created once per site. So, if you have already set it up, skip this step.

Below you can find the command you will need to add to your host's CRON interface:

wget "https://www.yoursite.com?option=com_convertforms&task=cron&command=uploadedfilescleaner&secret=SECRET_KEY”

How to include uploaded file on email?

In order to include an uploaded file on an email notification, you will need to use the respective field Smart Tag {field.fieldkey} as you would normally do with any field that you would like to pull its value. In the case of the File Upload Field, the Smart Tag will return the file's front-end URL.

Let's see some examples:

Include file as attachment

To include uploaded files as attachments in the email notification, use the field's Smart Tag in the Attachments option like in the screenshot below.

Convert Forms Email Notification File Attachments

Note: File attachments can often hurt email deliverability. For example, if an email provider only allows a maximum of 10MB attachment but the user uploads a file size higher than 10MB, the email won't be delivered.

To receive an e-mail notification including a link pointing to a uploaded file, use the following code:

<a href="/{field.fileuploaded}">{field.fileuploaded}</a>

There are cases where you'd like to download the file when clicking on the link (instead of navigating to the file). To make that happen you will need to add the download attribute to the <a> element like in the example:

<a href="/{field.fileuploaded}" download>Download File</a>

The previous examples work for single-file Upload Fields only. In case of a multiple files Upload Fields where you don't know how many files the user has uploaded, you can use the {field.FIELDNAME.html} Smart Tag instead which will render each file as a download link.


This will output something like this:

<div class="cf-links">
    <div><a download href="http://site.com/files/img1.png">img1.png</a></div>
    <div><a download href="http://site.com/files/img2.png">img2.png</a></div>
    <div><a download href="http://site.com/files/img3.png">img3.png</a></div>

Display multiple uploaded files with custom HTML output

In case the previous shortcode does not fit your needs and you would like more control over the output HTML, there's a solution. Let's say you want to render the uploaded files like this:

    <li><a href="https://site.com/files/file1.png" download>Download</a></li>
    <li><a href="https://site.com/files/file2.png" download>Download</a></li>
    <li><a href="https://site.com/files/file3.png" download>Download</a></li>

To make this happen, use the following Smart Tag

	{field.FIELDNAME.raw --layout=<li><a href="/%value%" download>Download</a></li>}

Display as an image

Another case is where you would like to see a preview of the uploaded image. To do that, you just need to include an <img> element and add the respective Field Smart Tag to its src property.

<img src="/{field.userimage}" width="500px" height="auto"/>

You can also have a downloadable preview image link

<a href="/{field.userimage}" download>
	<img src="/{field.userimage}" width="500px" height="auto"/>

To learn more details on how you can properly configure your forms to send an email on each form submission, visit the Email Notitications Guide.

How to upload to Dropbox, Google Drive or Amazon S3

Are you looking for a way to create an upload form that automatically sends a copy of the uploaded files to cloud storage systems such as Dropbox, Google Drive or even Amazon S3? Convert Forms got you covered. All you need to do, is to connect Convert Forms with Zapier.

To learn how to to make that happen, visit the How to connect Convert Forms with Zapier guide.

How to Rename Uploaded Files Using PHP

Are you looking for a way to rename uploaded files using PHP? Would you like to move uploaded files to a custom folder programmatically? You can use the code example below to make this happen:

$app->registerEvent('onConvertFormsFileUpload', function(&$filepath, $data) use ($post)
     $newFilepath = JPATH_SITE . '/images/myCustomFolder/' . basename($filepath);

     // Move file to the new folder and return the new filename
     $filepath = NRFramework\File::move($filepath, $newFilepath);

Note: The code above must be placed into the PHP Scripts -> Form Process

Translate the File Upload Field into your language

To display the default File Upload Field text into your language, you will need to do an override of the following language strings:

  • COM_CONVERTFORMS_UPLOAD_DRAG_AND_DROP_FILES="Drag and drop files here or"

To learn how to create a language override in Joomla, visit: https://docs.joomla.org/J3.x:Language_Overrides_in_Joomla

File Upload Security

We're sometimes asked about the security around the file upload feature. Bear in mind that files can only be uploaded to the server if there's a file upload field on an active form. If no active forms have a file upload field then no files can be uploaded to the server.

How Convert Forms protects you from attackers

Runs a MIME type check

Adds an extra layer of security by running a MIME type validation check to determine whether the uploaded file is in allowed file types.

Prevents unauthorized access

Convert Forms attempts to protect you against unauthorized requests called CSRF (Cross Site Request Forgery) attacks by adding a token into each File Upload request. This token is a randomized string that is used to authenticate that the request being made is coming from a valid form and a valid session. Read more details about this method, on the Joomla! official documentation page here.

Randomises uploaded file names

Once hackers have managed to upload an executable file to your server, they may attempt to execute it using a web browser or command line. One simple trick from preventing hackers running their file is to randomly rename it. Convert Forms protects you by adding a random prefix to the file uploaded.

Disables upload directory file browsing

If there is no default page or homepage under a website directory or folder, you may find it display all files under the directory when browsing it from web browsers. Convert Forms uses another trick to disable directory browsing by placing an empty index.html file into every upload directory.

Prevents PHP execution inside the upload directory

Although PHP files are not allowed to be uploaded by default, Convert Forms needs to ensure also that PHP files are disabled and not executed inside the upload directory folder structure. It makes that happen by generating and placing an .htaccess file into each upload directory.

Makes use of the Joomla!'s index.php entry point file to handle uploads

All file uploads pass through the Joomla! application ensuring bad files and code upload attacks are blocked. This also makes Convert Forms compatible with security-based Joomla! extensions such as Akeeba Admin Tools which adds an extra layer of security to file uploads.

Best practices to increase File Upload security

Reduce max file upload size

Preventing users from uploading large files will reduce the risk of your file upload system being used for a DoS attack. Make sure you've properly configured the File Size Limit option found under the File Upload options.

Restrict file types

When a file upload field is added to a form make sure you configure the Allowed File Types option to be as restrictive as possible. There are certain extensions that Convert Forms will always block to protect from attacks but it's good practice to limit the extensions to the file extensions you expect to receive.

Use a different Upload Folder for each form

You may wish to increase the security of your uploaded files by changing the place they're stored to a different place for each form. You can do this by configuring the Upload Folder option.


I get "Unsupported File" error when I try to upload any file

First make sure the type of the file you're trying to upload is set in the Allowed File Types option in your file upload field settings. Next, verify the Fileinfo PHP extension is installed and enabled on your server. This is required to guess the mime type of the file.

File uploads are not working after upgrading to Joomla 5

This issue can be solved by using the official .htaccess file that comes with Joomla 5.
